High Speed Doors

Chiller-type

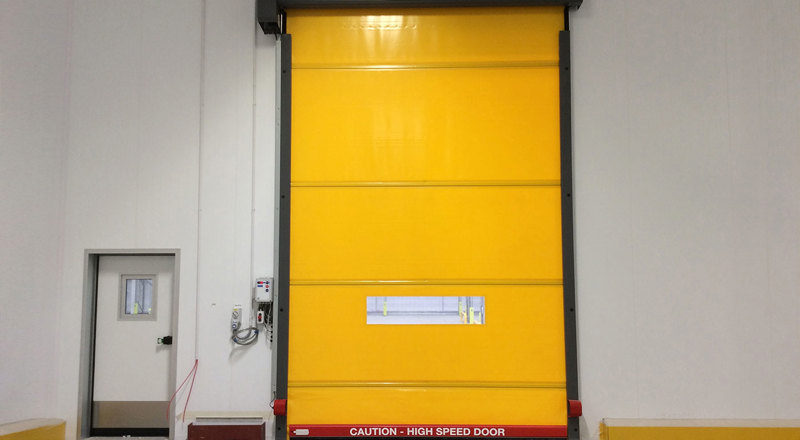

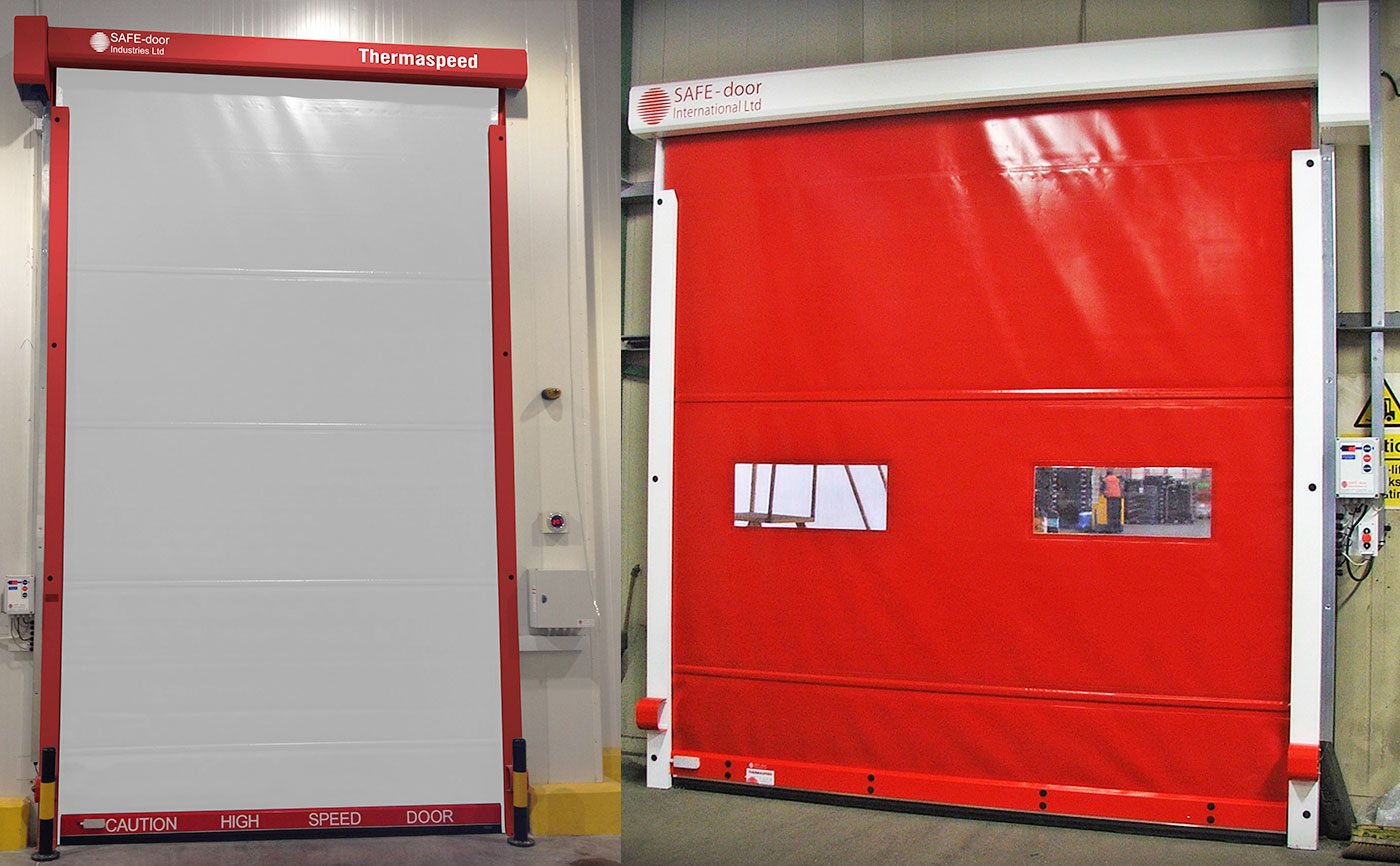

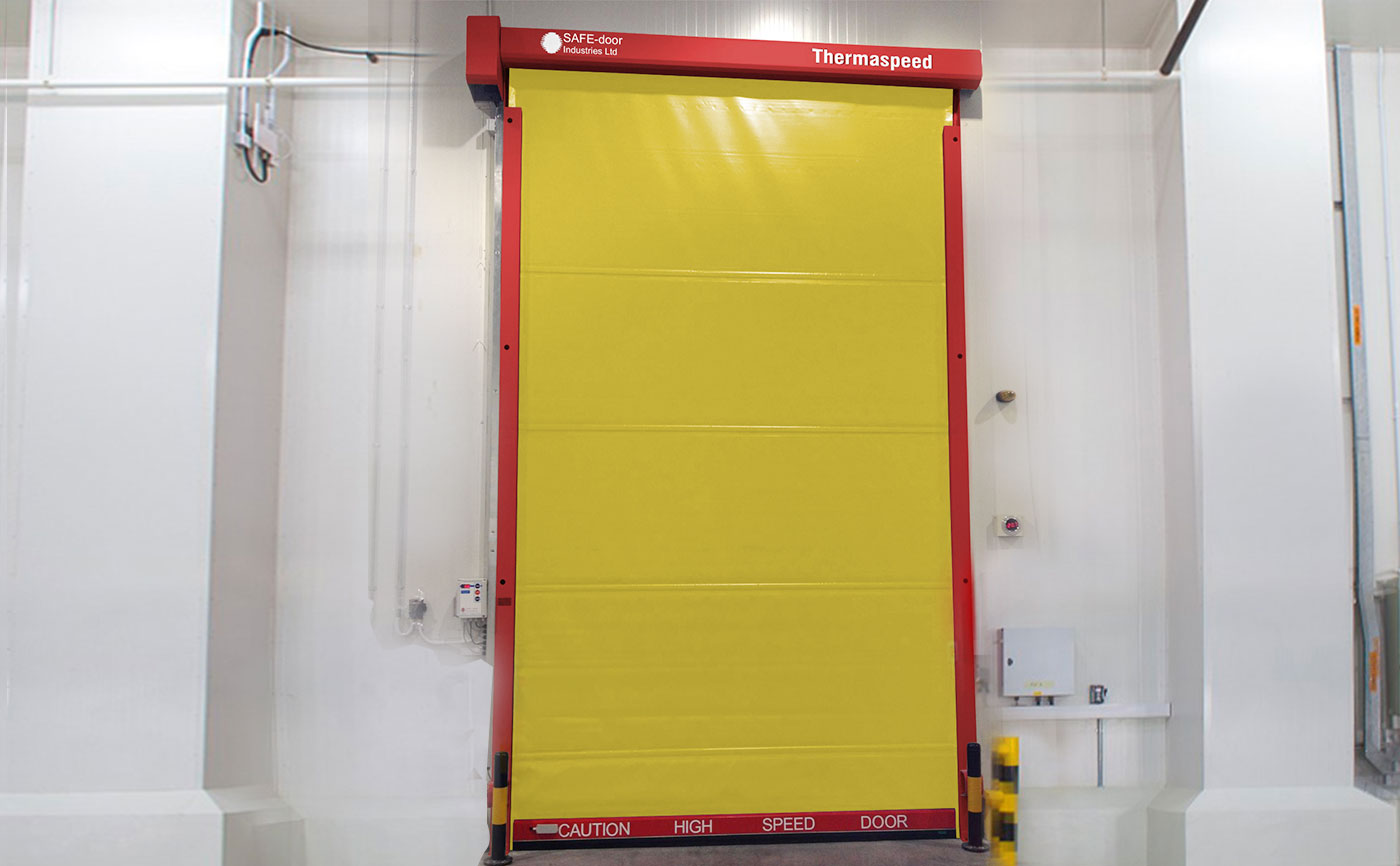

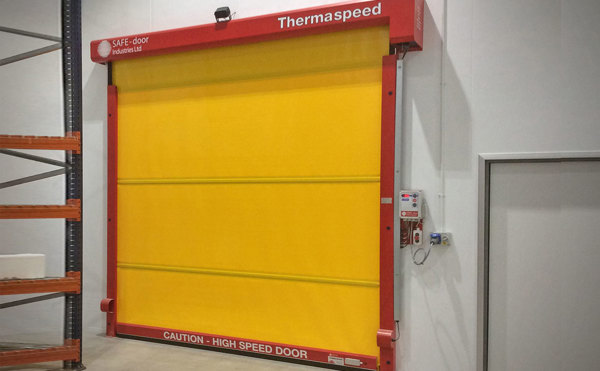

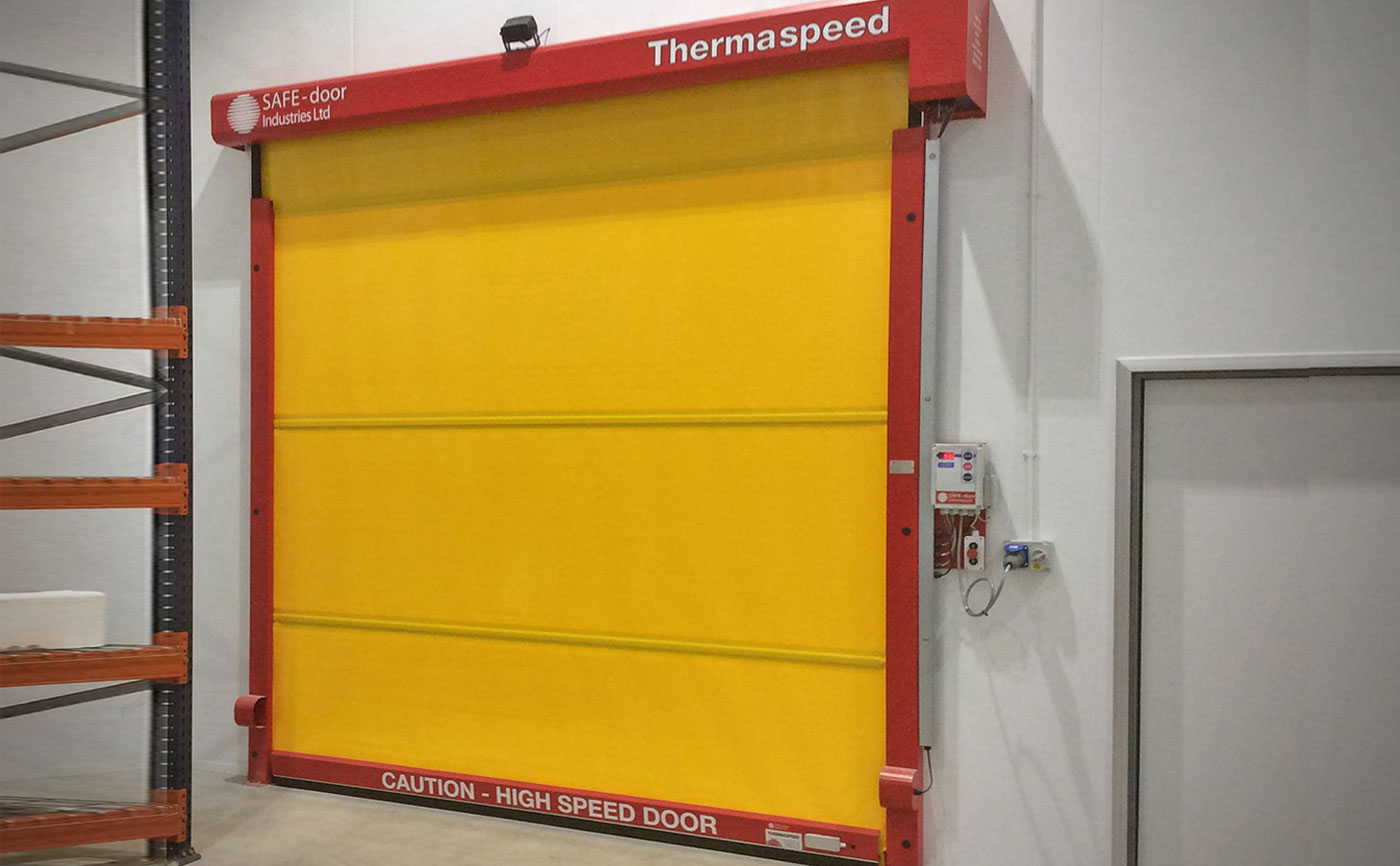

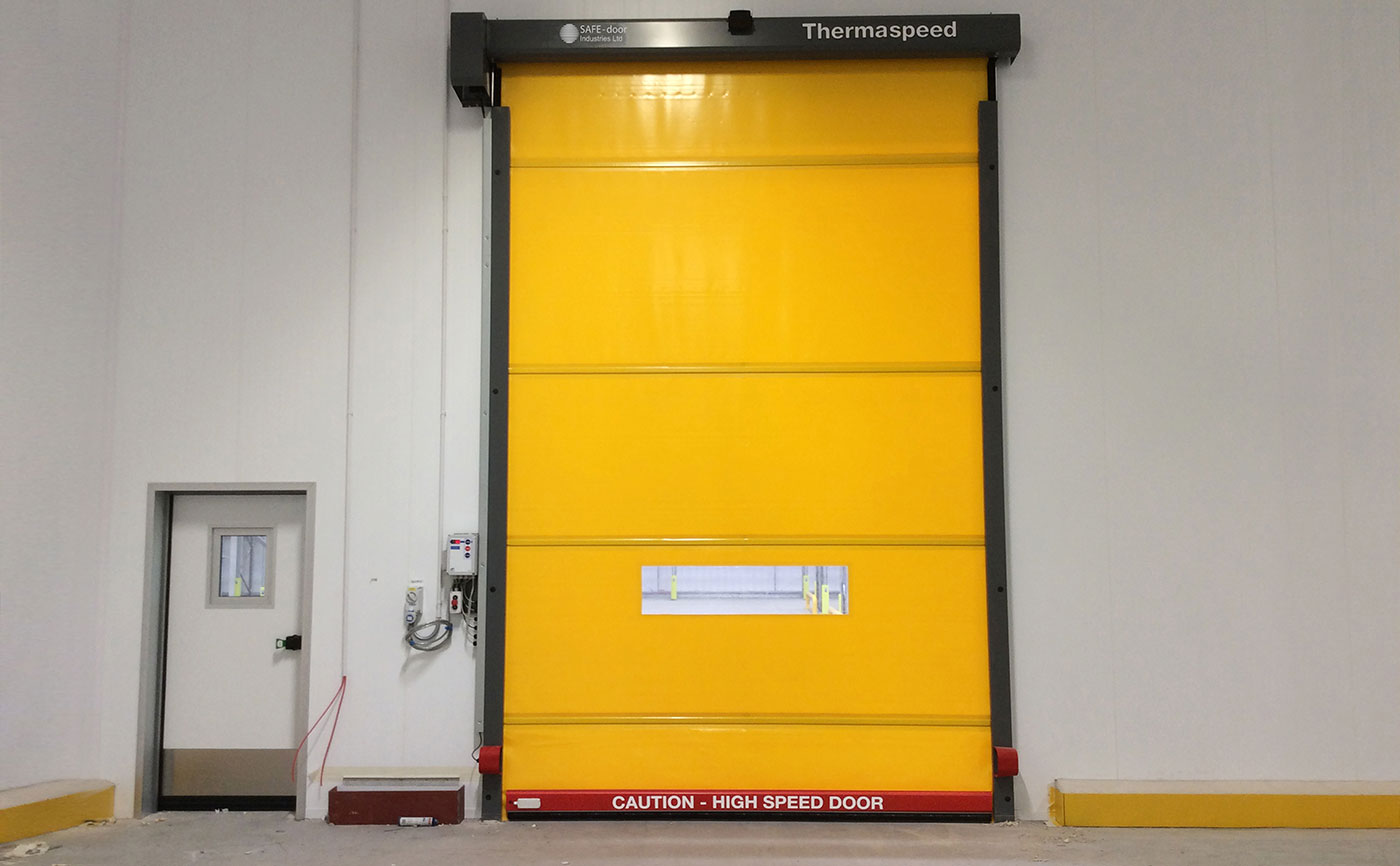

Thermaspeed doors are used in industrial applications due to their simplicity and robust design. They are also greatly favoured in high trafficand harsh environment distribution centres.Thermaspeed doors are built to last, with frames made from galvanised 3mm fabricated steel and the toughest of PVC fabrics, with integrated wind bars to ensure an effective barrier at all times.

Keeps air infiltration to a minimum.
High speed operation increases efficiency for traffic flow.
Reduced operating costs.
Durable design.
Engineered to minimize required maintenance.

Product application: Industrial high traffic applications

Technical data

Closing

Automatically via inbuilt adjustable timer.

Color sheet pile

RAL 1003 – Signal Yellow. Other colours can be available upon request.

Frame

Support frame

Operation

Microprocessor based frequency converter with low voltage controls. 3-way push-button station (OPEN ~ E-STOP ~ CLOSE).

R-value panels

Approximately 8.05 m2K/W (Thermaster), Approximately 0.16 m2K/W (Thermaspeed)

Curtain Specifications

900gsm PVC coated woven polyester.

Temperature Resistance

DIN 53372 -36ºC to +80ºC.

Low Flammability

DIN 75200 <100 mm/min.

Curtain Features

CFC free, UV resistant with integrated wind bars to ensure curtain integrity. Anti-wear pads on wind bar ends.

Supply

230 V, single phase, 50 Hz, 16 A (Thermaspeed) or 32 A (Class C MCB) (Thermaster).

Thermair Generator

Integrated unit providing a low temperature conditioned air flow (Thermaster).

Extendibility

Prepared to accept a multitude of inputs from induction loop detectors, motion detectors, pull-cords, push-buttons, etc.

Opening Speed

Up to 2.0m.s-1.

Closing Speed
