High Speed Doors

Freezer-type

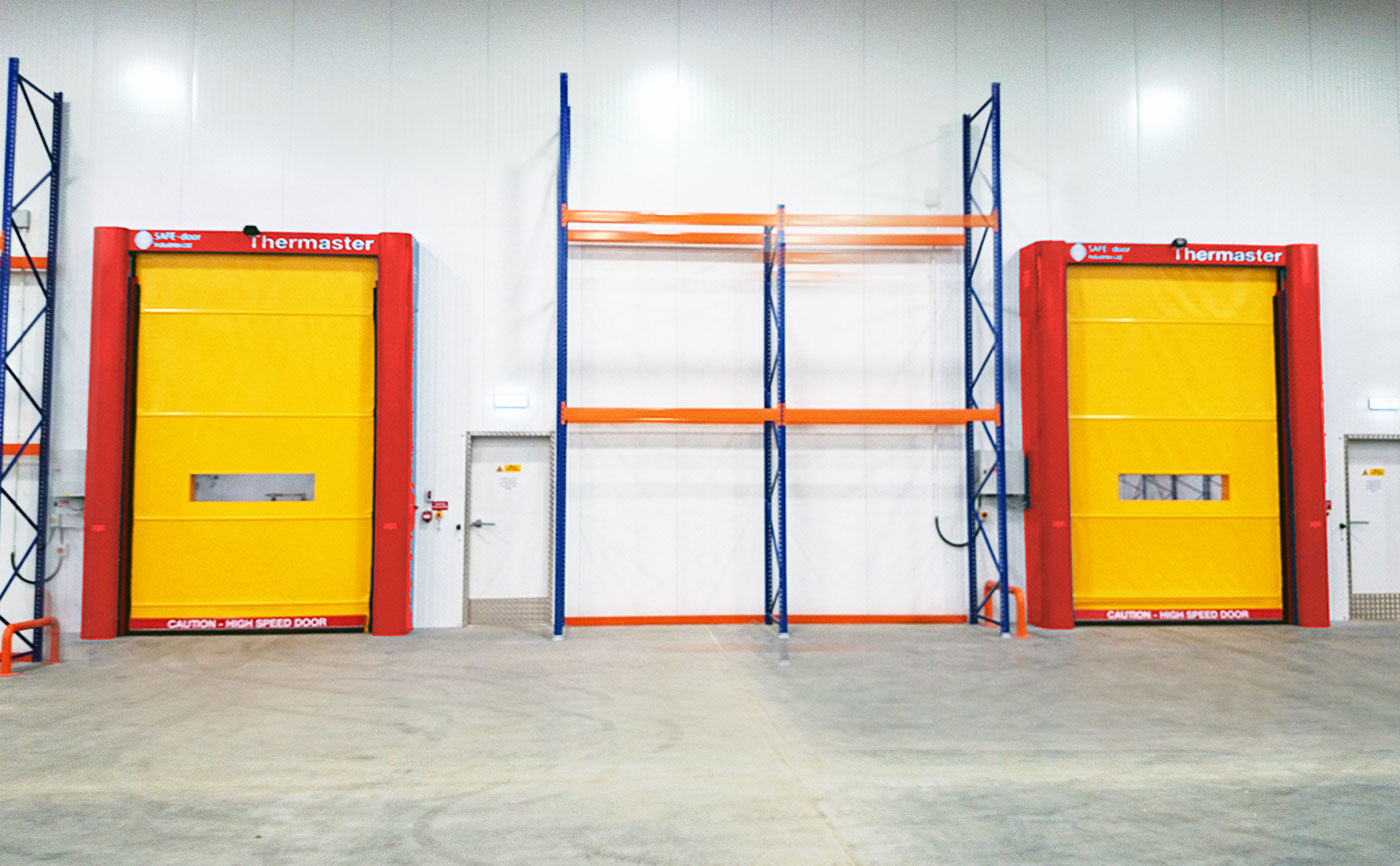

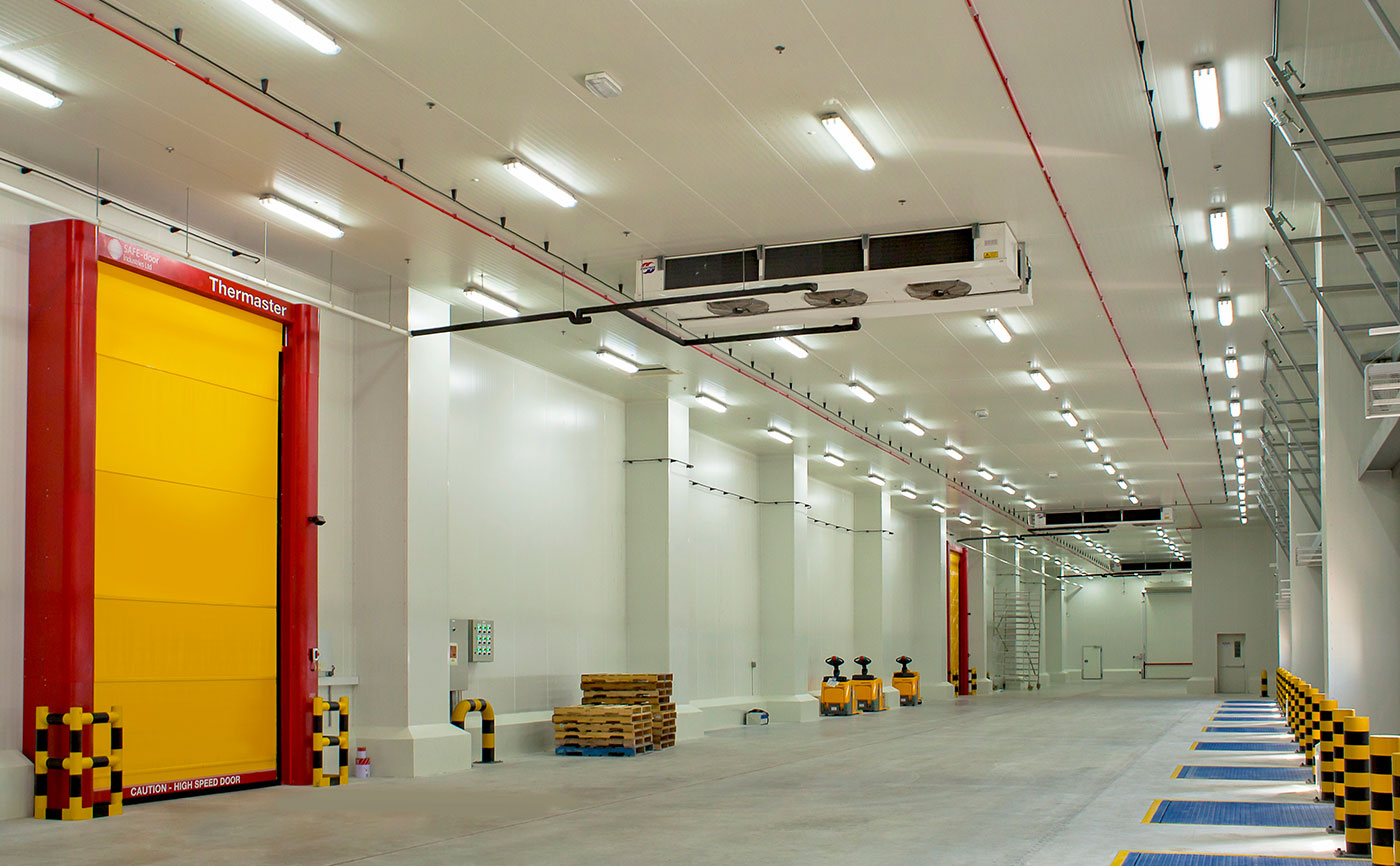

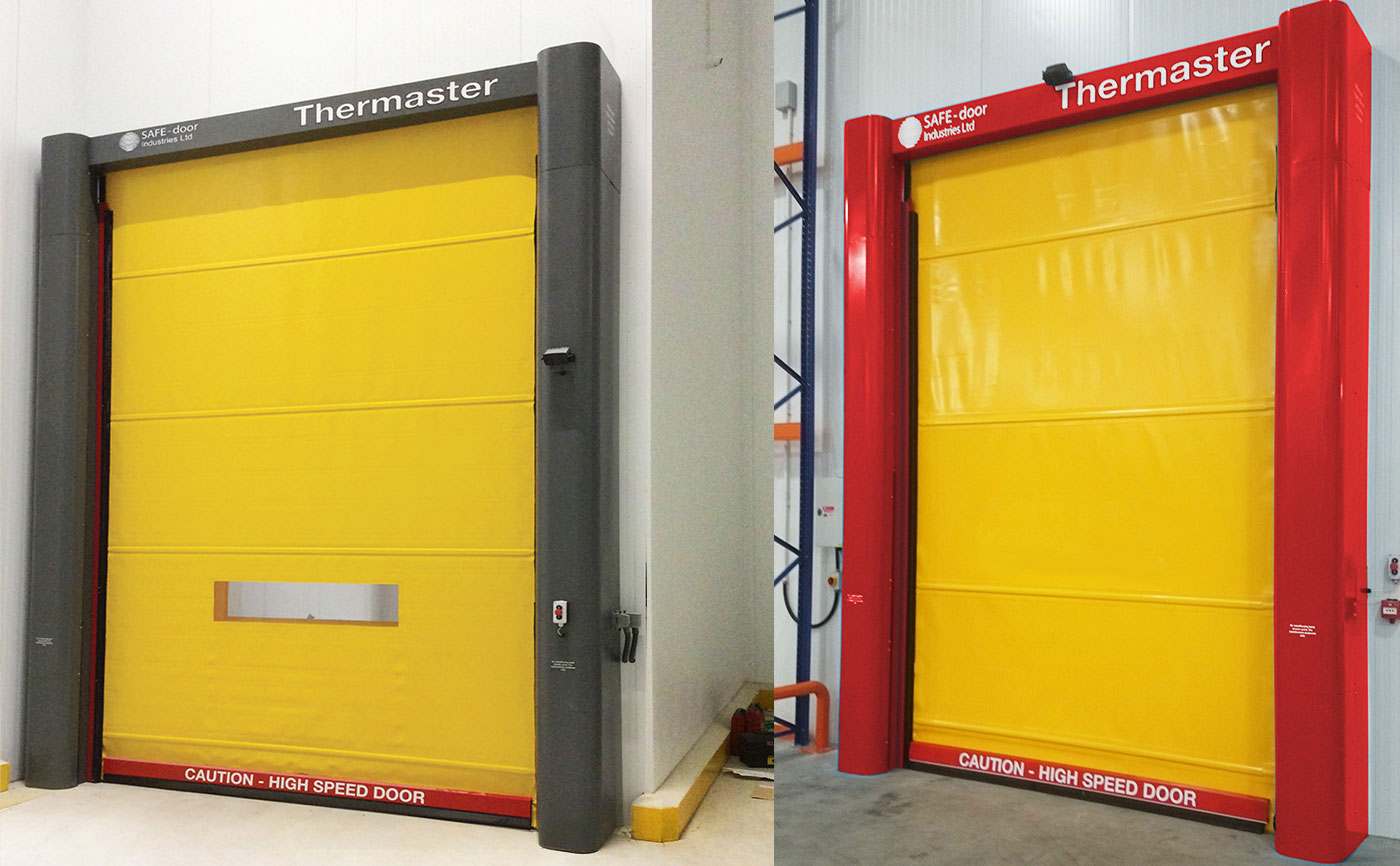

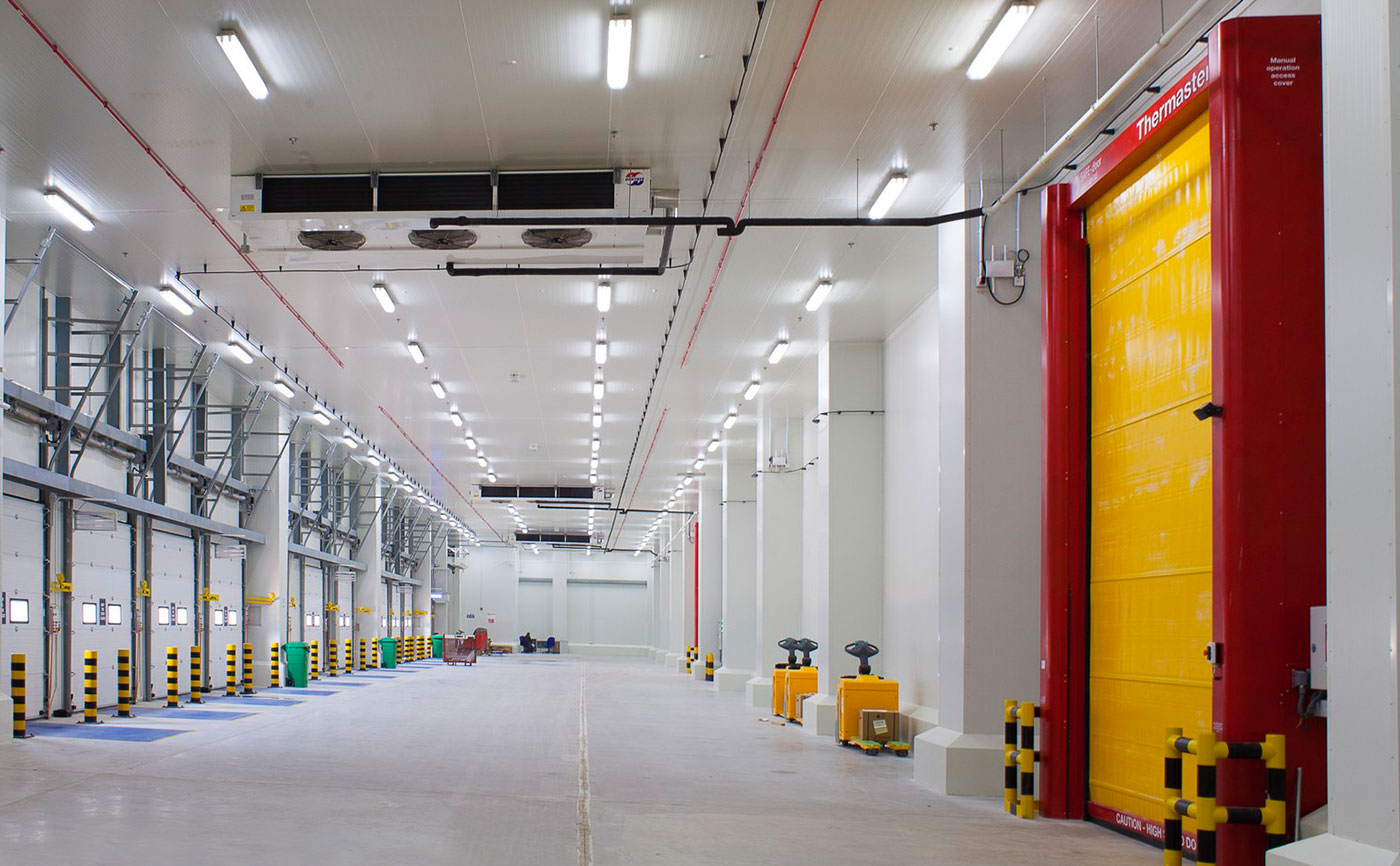

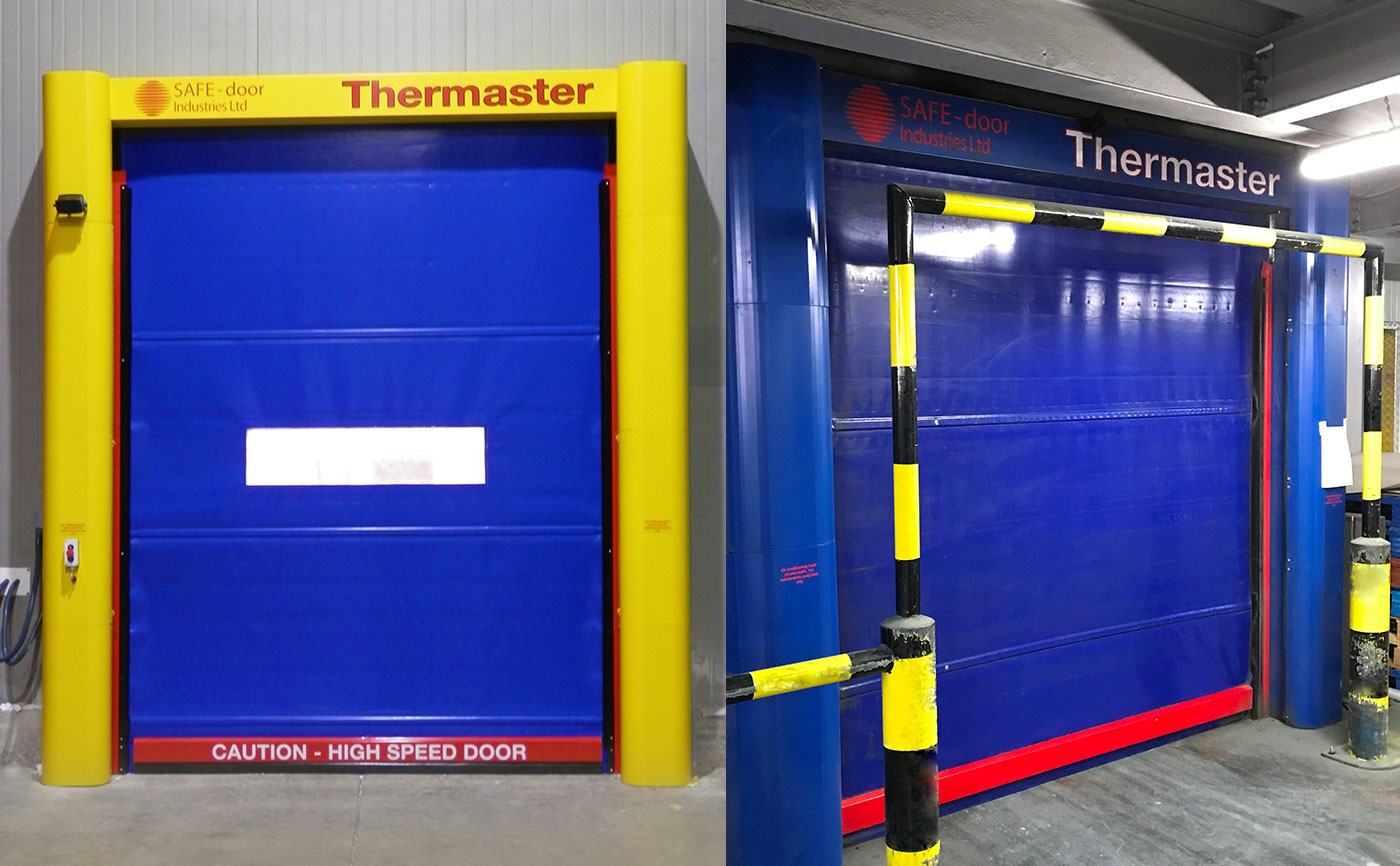

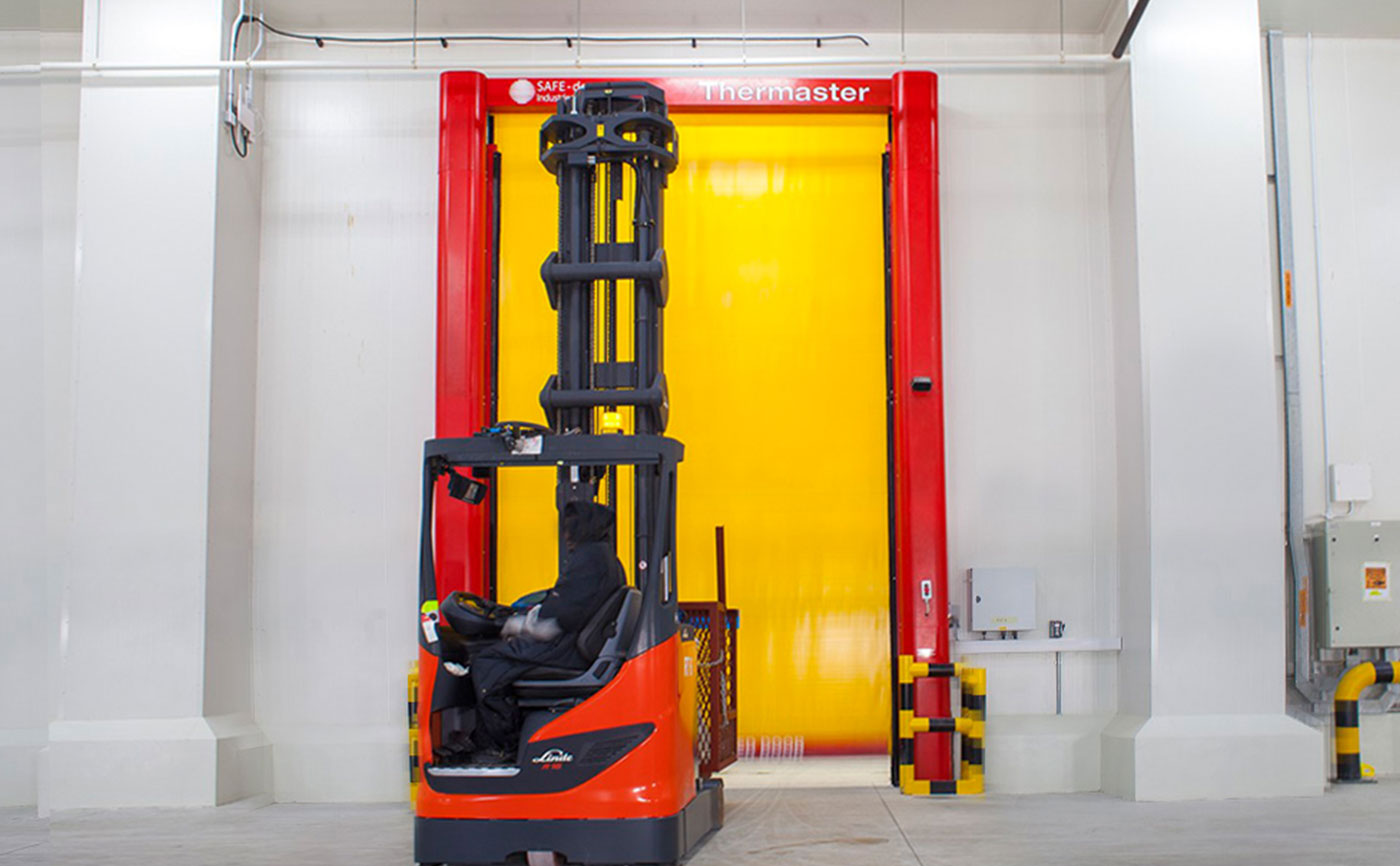

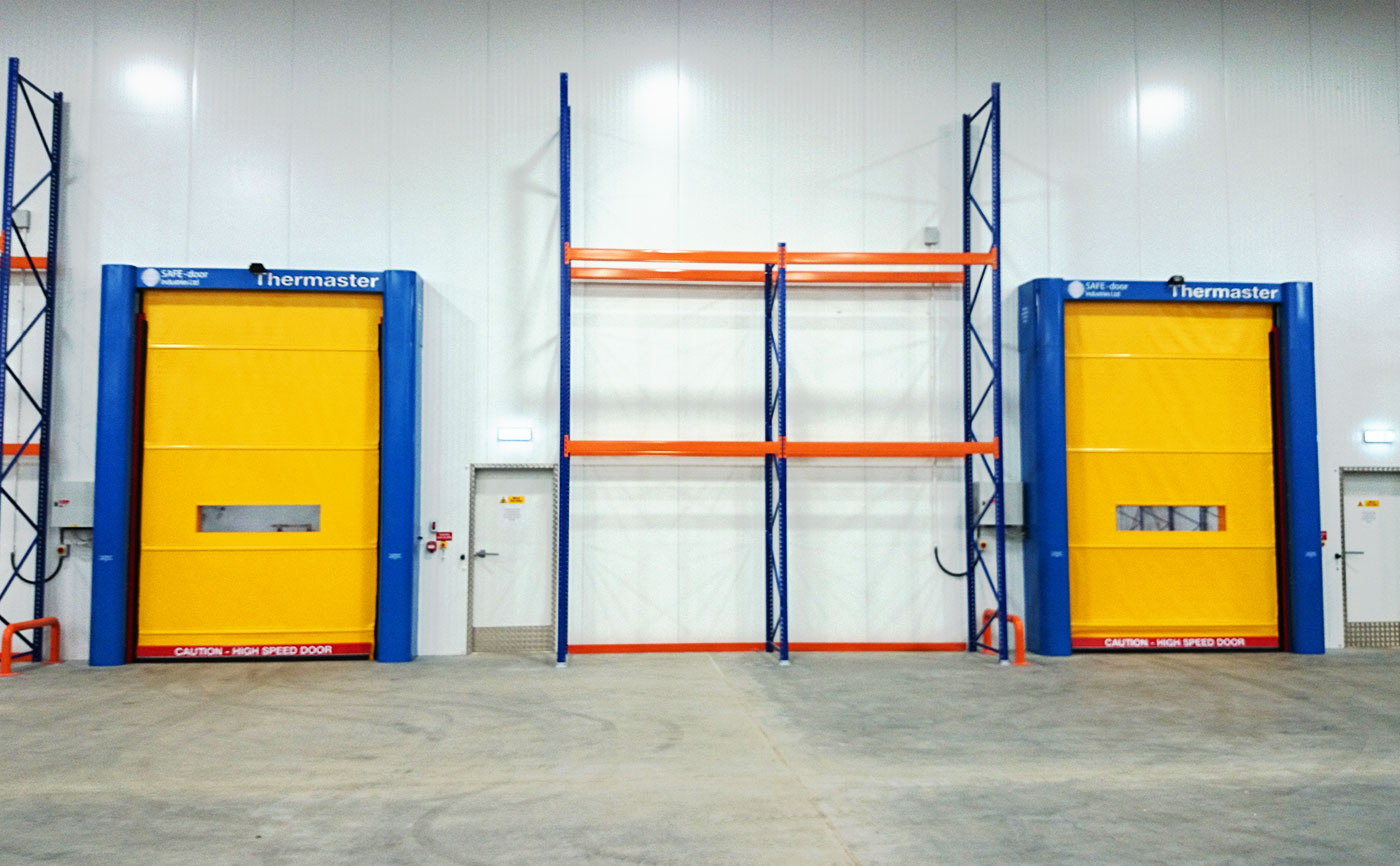

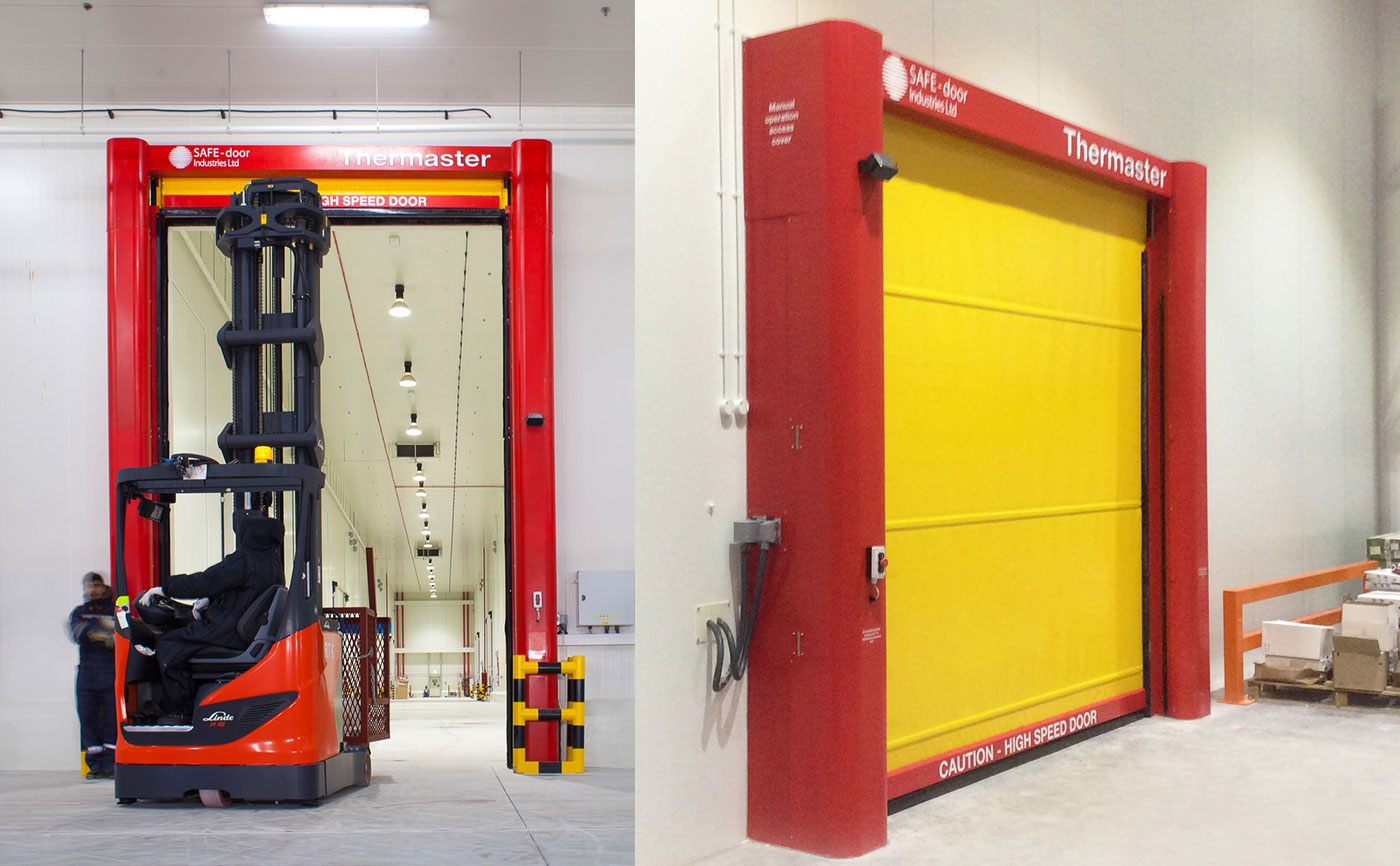

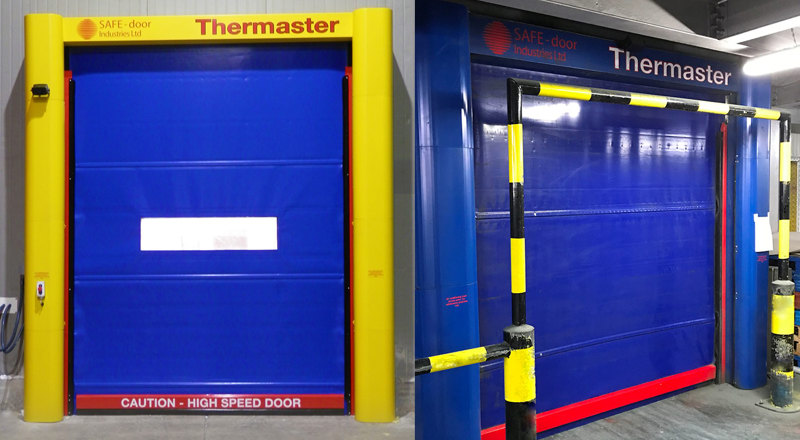

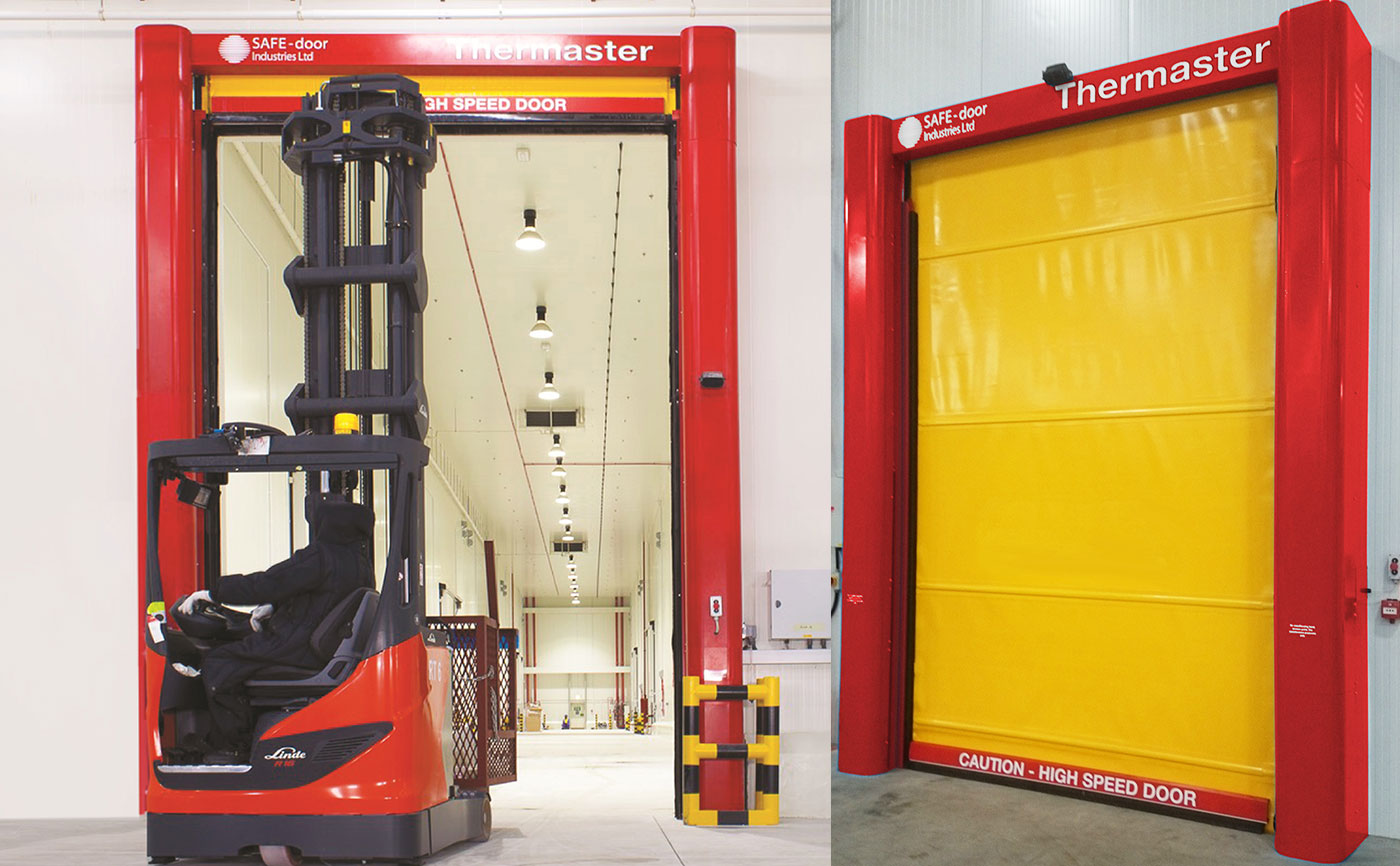

The ultimate cold store doorway; the Thermaster is ideal for use in high traffic and harsh environment distribution centres. Designed to blend in with its working environment, the Thermaster never fails to impress its users. Our clients vouch for the benefits that come with its installation, such as:

  • Improved store temperature control.
  • Lower defrost frequency.
  • Improved safety due to ice-free floors.
  • Ice and snow cleared from surrounding walls.
  • High-speed operation increases store efficiency.
  • Reduced operating costs.
  • Robust design.
  • Engineered to minimize required maintenance.

Product application: For cold stores or areas with high temperature differences

Color sheet pile
RAL 1003 – Signal Yellow. Other colours can be available upon request.
Operation
Microprocessor based frequency converter with low voltage controls. 3-way push-button station (OPEN ~ E-STOP ~ CLOSE).
R-value panels
Approximately 8.05 m2K/W (Thermaster), Approximately 0.16 m2K/W (Thermaspeed)
Curtain Specifications
900gsm PVC coated woven polyester.
Temperature Resistance
DIN 53372 -36ºC to +80ºC.
Low Flammability
DIN 75200 <100 mm/min.
Curtain Features
CFC free, UV resistant with integrated wind bars to ensure curtain integrity. Anti-wear pads on wind bar ends.
Supply
230 V, single phase, 50 Hz, 16 A (Thermaspeed) or 32 A (Class C MCB) (Thermaster).
Thermair Generator
Integrated unit providing a low temperature conditioned air flow (Thermaster).
Extendibility
Prepared to accept a multitude of inputs from induction loop detectors, motion detectors, pull-cords, push-buttons, etc.
Opening Speed
Up to 2.0m.s-1.
Closing Speed
Up to 2.0m.s-1.
Leaf Format
Twin curtain vertical rapid roll with, 'Thermair', barrier.
Frame Finish
Standard PPC RAL 3020 - Traffic Red. Other standard RAL colours and stainless steel are available.
Canopy
The door is fitted with a full width roller canopy and an integrated motor cover with finish to match the support frame.
